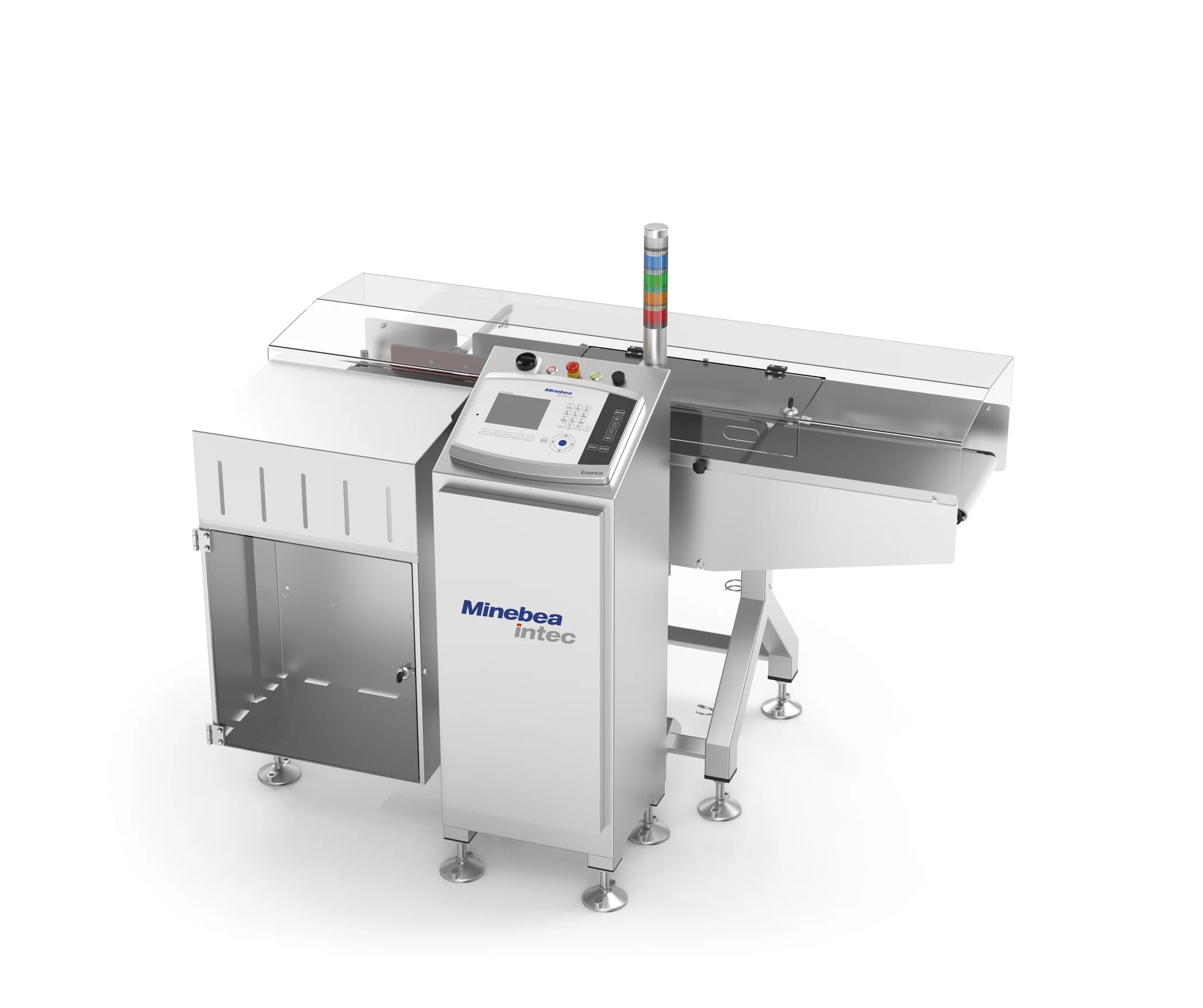

Minebea Intec Essentus L Performance Checkweigher

Minebea Intec Essentus L Performance Checkweighere offers basic checkweighing for small product weights up to 6 kg and all the features of the Essentus L Efficiency with the addition of the clear plus feature, including a possible control of upstream filling systems.

Minebea Intec Essentus L Performance Checkweigher

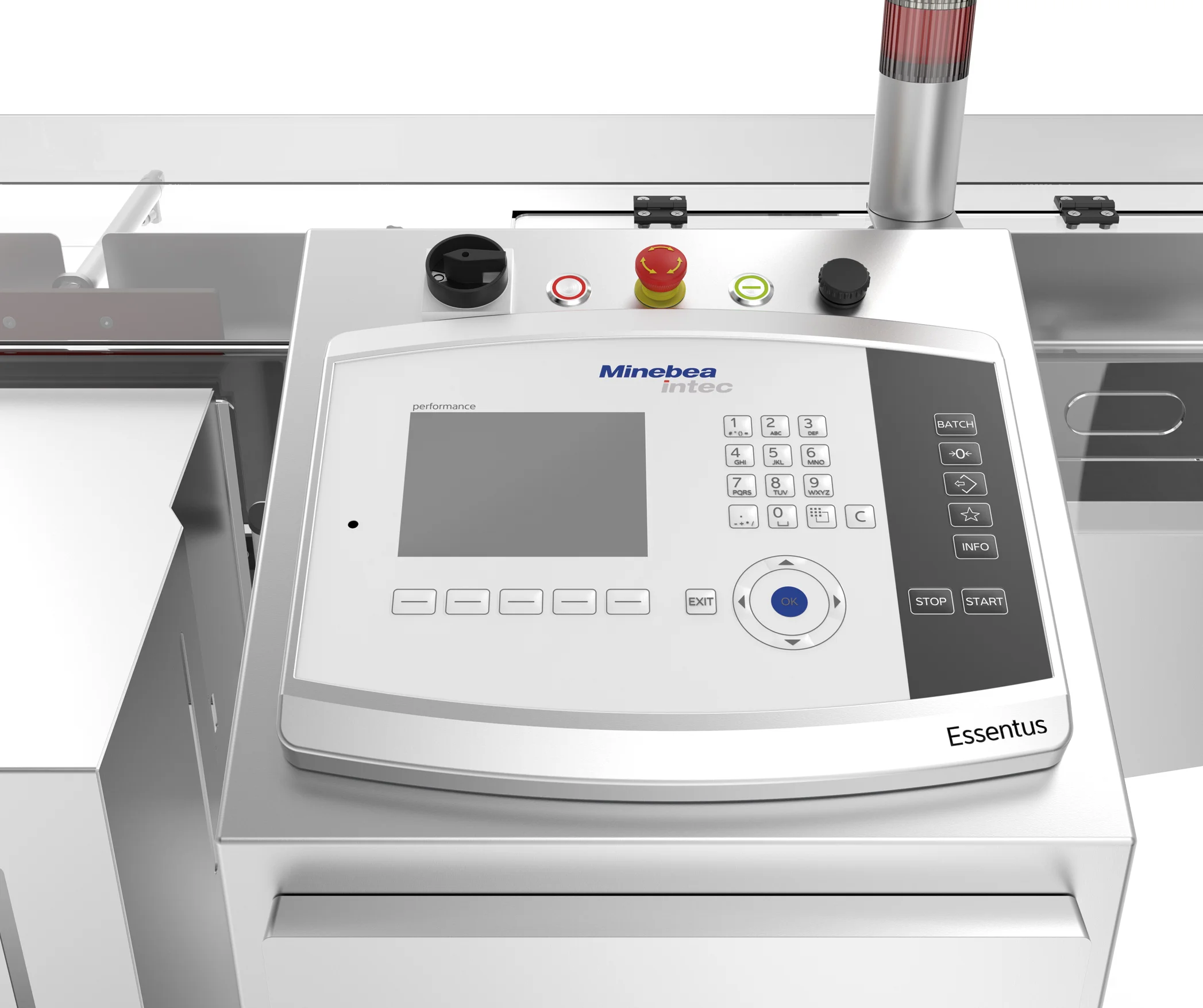

Minebea Intec Essentus L Performance Checkweighere offers basic checkweighing for small product weights up to 6 kg and all the features of the Essentus L Efficiency with the addition of the clear plus feature, including a possible control of upstream filling systems. Furthermore, the standard version of the model provides a sufficient variety of statistics for most applications to meet all the requirements for product monitoring and data evaluation. This detailed analysis can be seen at a glance directly on the display. The automatic speed adjustment allows the scale to be integrated into existing production lines. The Essentus Performance operation is easy with the learning mode allows even untrained personnel to easily create new products. It also guides them step-by-step through the process.

Key Features

  • Basic checkweighing for small product weights up to 6 kg
  • Precise weight and integrity checking
  • Easy to operate
  • Supports various conveyor belts
  • Robust conveyor technology
  • High potential for savings
  • Optional trend control
  • Automatic learning function for simple configuration
  • Automatic speed control
  • Detailed statistical analysis and various interfaces
Specifications WS 0.6kg WS 1.5kg WS 3.0kg WS6.0kg
Weighing system WS 0.6 kg WS 1.5 kg WS 3.0 kg WS 6.0 kg
Weighing range 600g 1,500g 3,000g 6,000g
Resolution 0.1g 0.2g 0.5g 1g
Maximum throughput (pcs/min.) 180 180 120 120
Maximum belt speed (m/s) 1.5 1.5 1.5 1.5
Infeed belt width (mm) 150 150/200/250/300 150/200/250/300 150/200/250/300
Weighing belt width (mm) 50/100/150 150/200/250/300 150/200/250/300 150/200/250/300
Outfeed belt width (mm) 150 150/200/250/300 150/200/250/300 150/200/250/300
