Ohaus Defender 3000 i-D33 Washdown Bench Scale
Ohaus Defender 3000 Washdown Bench Scales are ideal for general weighing, simple counting and checkweighing applications in damp environments, or when washdown cleaning is required. The Defender 3000 Series features a simple, yet rugged, stainless steel design and IP66 stainless steel indicator with tactile keys, multicolour backlit LCD display, AC or standard rechargeable battery operation and flexible mounting capabilities.
Ohaus Defender 3000 i-D33 Stainless Steel Washdown Bench Scale
Ohaus Defender 3000 Washdown Bench Scales are ideal for general weighing, simple counting and checkweighing applications in damp environments, or when washdown cleaning is required. The Defender 3000 Series features a simple, yet rugged, stainless steel design and IP66 stainless steel indicator with tactile keys, multicolour backlit LCD display, AC or standard rechargeable battery operation and flexible mounting capabilities.
Key Features
- Ideal for general weighing, simple counting and checkweighing applications in damp environments, or when washdown cleaning is required.
- Simple, yet rugged, stainless steel design
- IP66 stainless steel indicator with tactile keys, multicolour backlit LCD display, AC or standard rechargeable battery operation and flexible mounting capabilities
- IP67 load cell
- 150% overload protection
- Features software for Parts Counting, Checkweighing, and Totalization. Includes RS232 with optional USB Device or Ethernet for printing or data connectivity.
Results are clearly shown using the large, bright backlit LCD display. In Checkweighing mode, the display changes colour (yellow/green/red) to alert when it is within the target weight range. This tough industrial-scale features a 304-stainless steel platform and frame, IP67 load cell. The indicator features an IP66 washdown protected 304-stainless steel housing with a mounting bracket.
Optional Accessories

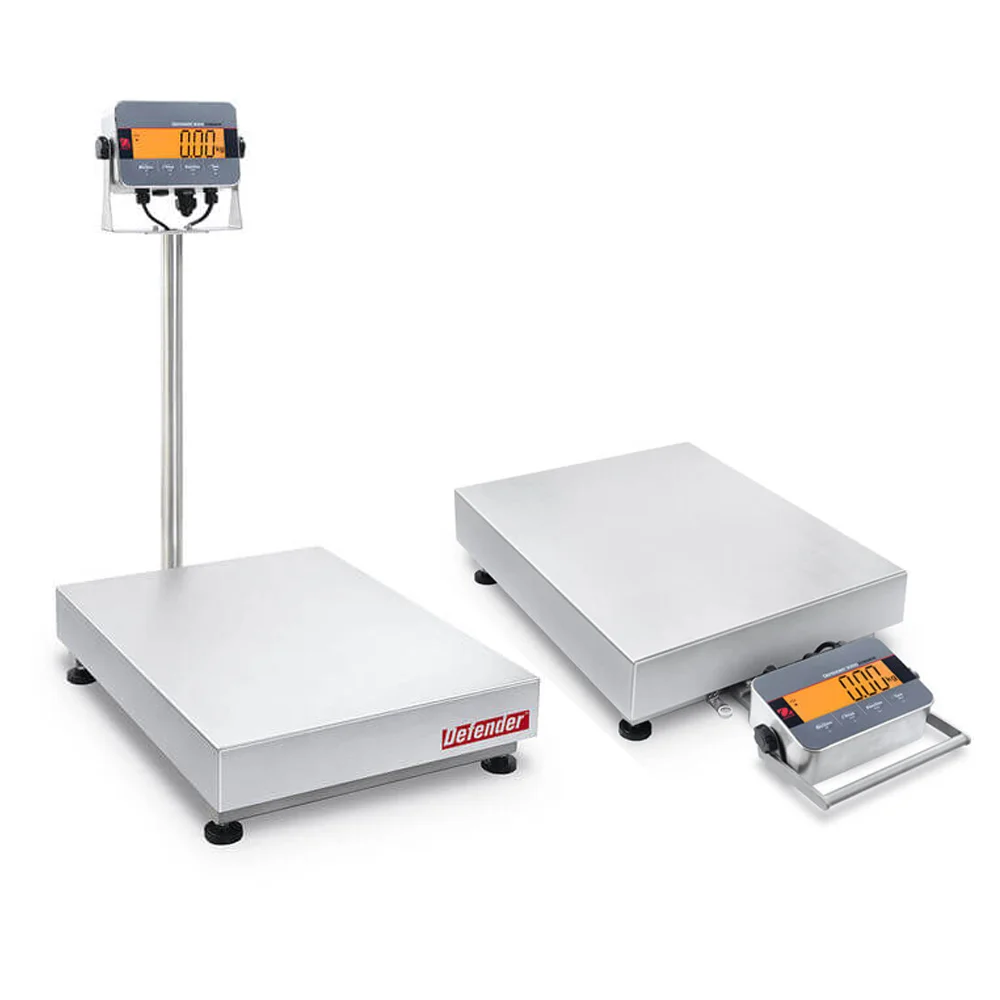

Column mount bench scale
| Model | i-D33XW15C1R6-GB | i-D33XW30C1R6-GB | i-D33XW60C1R6-GB | i-D33XW60C1L7-GB | i-D33XW150C1L7-GB | i-D33XW150C1X7-GB | i-D33XW300C1X7-GB |
| Capacity x Default Readability | 15 kg x 2 g | 30 kg x 5 g | 60 kg x 10 g | 150 kg x 20 g | 300 kg x 50 g | ||
| Maximum Displayed Resolutio | 1:7,500 | 1:6,000 | 1:7,500 | 1:6,000 | |||
| Linearity/Repeatability | ±1d | ||||||
| Certified Model | i-D33XW15C1R6GB-M | i-D33XW30C1R6GB-M | i-D33XW60C1R6GB-M | i-D33XW60C1L7GB-M | i-D33XW150C1L7GB-M | i-D33XW150C1X7GB-M | i-D33XW300C1X7GB-M |
| Capacity x Certified/Approved | 15 kg x 5 g | 30 kg x 10 g | 60 kg x 20 g | 150 kg x 50 g | 300 kg x 100 g | ||
| Maximum Certified Resolution | 1:3,000 | ||||||
| Indicator | 304 stainless steel indicator | ||||||
| Column | 330 mm stainless steel | 680 mm stainless steel | |||||
| Base Construction | Stainless steel removable weighing platform with stainless steel frame, silicon sealed IP67 stainless steel loadcell | ||||||
| Safe Overload Capacity | 150% of maximum capacity | ||||||
| Stabilization Time | Within 1 second | ||||||
| Operating Temperature Range | -10°C to 40°C | ||||||
| Scale Dimensions (A x B x C x |
355 x 305 x 121.8 x 75 x 541.6 x 481.9 mm | 550 x 420 x 134 x 80 x 896.1 x | 650 x 500 x 150 x 90 x 894.6 x 784.6 mm | ||||
| Shipping Dimensions (L x W x | 642 x 497 x 212 mm / M models: 495 x 455 x 373 mm | 857 x 564 x 225 mm / M mod | 1022 x 687 x 247 mm / M models: 1022 x 687 x 247 mm | ||||

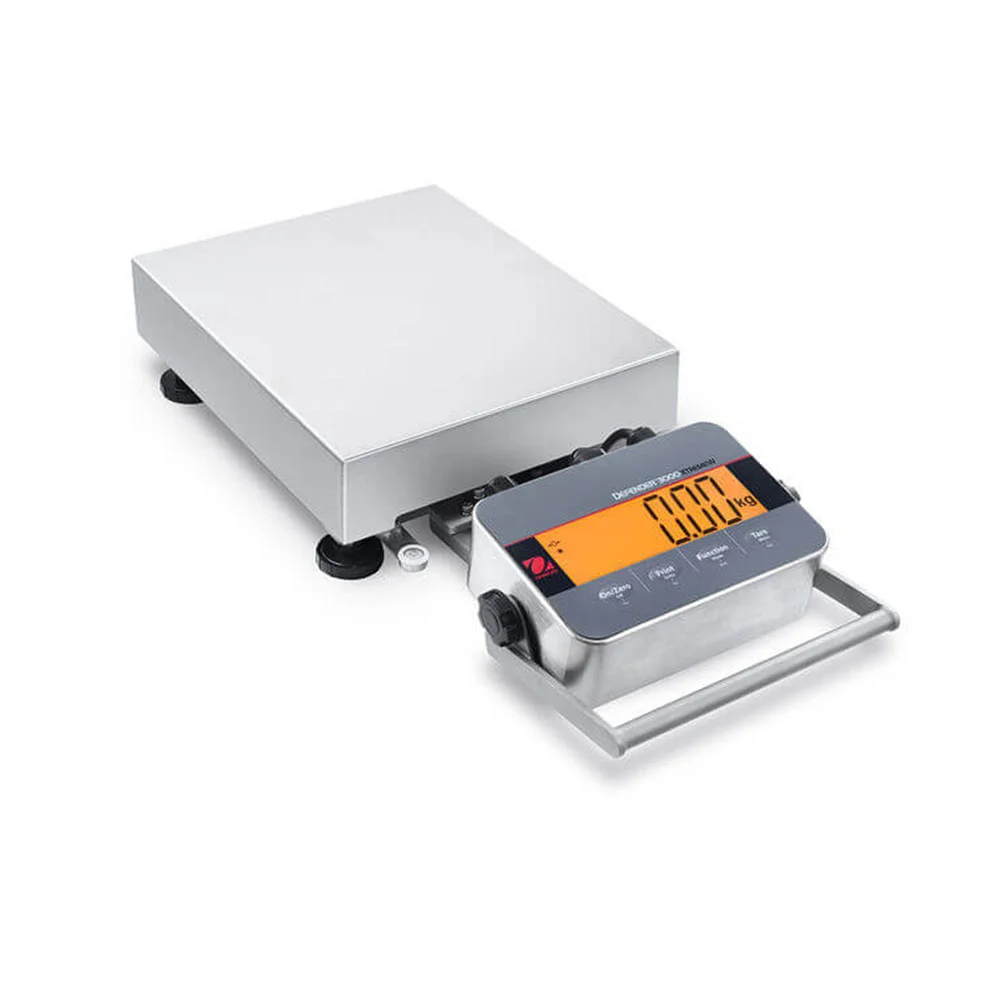

Front mount bench scale
| Model | i-D33XW15C1R5-GB | i-D33XW30C1R5-GB | i-D33XW60C1R5-GB | i-D33XW60C1L5-GB | i-D33XW150C1L5-GB | i-D33XW150C1X5-GB | i-D33XW300C1X5-GB |
| Capacity x Default Readability | 15 kg x 2 g | 30 kg x 5 g | 60 kg x 10 g | 150 kg x 20 g | 300 kg x 50 g | ||
| Maximum Displayed Resolutio | 1:7,500 | 1:6,000 | 1:7,500 | 1:6,000 | |||
| Linearity/Repeatability | ±1d | ||||||
| Certified Model | i-D33XW15C1R5GB-M | i-D33XW30C1R5GB-M | i-D33XW60C1R5GB-M | i-D33XW60C1L5GB-M | i-D33XW150C1L5GB-M | i-D33XW150C1X5GB-M | i-D33XW300C1X5GB-M |
| Capacity x Certified/Approved | 15 kg x 5 g | 30 kg x 10 g | 60 kg x 20 g | 150 kg x 50 g | 300 kg x 100 g | ||
| Maximum Certified Resolution | 1:3,000 | ||||||
| Indicator | 304 stainless steel indicator | ||||||
| Column | 304 stainless steel front-mount bracket with handle | ||||||
| Base Construction | Stainless steel removable weighing platform with stainless steel frame, silicon sealed IP67 stainless steel loadcell | ||||||
| Safe Overload Capacity | 150% of maximum capacity | ||||||
| Stabilization Time | Within 1 second | ||||||
| Operating Temperature Range | -10°C to 40°C | ||||||
| Scale Dimensions (A x B x C x |
355 x 305 x 121.8 x 75 x 130 x 645.5 mm | 550 x 420 x 134 x 80 x 132.9 x | 650 x 500 x 150 x 90 x 133 x 941 mm | ||||
| Shipping Dimensions (L x W x | 857 x 564 x 225 mm / M models: 495 x 455 x 373 mm | 1022 x 687 x 247 mm / M mo | 1022 x 687 x 247 mm / M models: 1022 x 687 x 247 mm | ||||
i-DT33XW Multifunctional Indicator
i-DT33XW is the go-to indicator when simplicity and accuracy are necessary in wet environments, or where the ability to frequently wash down is a must. The IP66 washdown stainless steel housing indicator features software for Weighing, Parts Counting, Checkweighing and Totalization, a large multicolour backlit LCD display, stainless steel mounting bracket, and a built-in bi-directional RS232C for printing or data connectivity.
| Model | i-DT33XW |
| Construction | 304 stainless steel housing and mounting bracket |
| Protection | IP66 |
| Weighing Units | Kilogram, Gram, Pound, Ounce, Pound: Ounce (Kilogram, Gram only for M models) |
| Application Modes | Weighing, Parts Counting, Checkweighing and Totalization |
| Display | 6-digit, 7-segment LCD display with multi-color backlight, 45 mm high digits |
| Check Indicator | 3 Color (red, green, yellow) backlight |
| Keyboard | 4 function keys |
| Auto-zero Tracking | Off, 0.5 d, 1 d or 3 d |
| Zeroing Range | 2% or 100% of capacity |
| Interface | RS232 included |
| Optional USB, Ethernet | |
| Power | 100-240 VAC / 50/60 Hz Universal Power Supply, hardwired or standard rechargeable battery |
| Battery Life | Up to 100 hours continuous use with backlight off (rechargeable battery) |
| Calibration | Zero, Span or 3 point-Linear |
Additional information
| Capacity | |
|---|---|
| Pan/Platform Size (mm) | |
| Readability | |
| Readability (Certified) | |
| Legal for Trade | |
| Construction | Column mounted indicator, Front mounted indicator |
