Ohaus Adventurer Analytical Balances

From: £2,020.00 ex VAT

Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the Ohaus Adventurer incorporates all of the applications necessary for routine weighing and measurement activities.

Configure your balance:

To request a demo, further information or our lowest UK price guarantee for the Ohaus Adventurer Analytical Balances, please contact us.

Ohaus Adventurer Analytical Balances

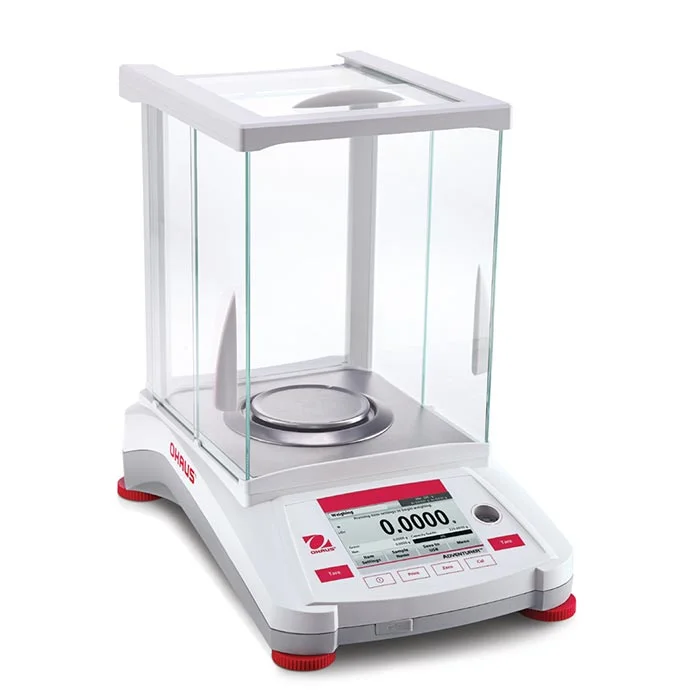

Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the Ohaus Adventurer Analytical incorporates all of the applications necessary for routine weighing and measurement activities. With a colour touchscreen, GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.

Key Features

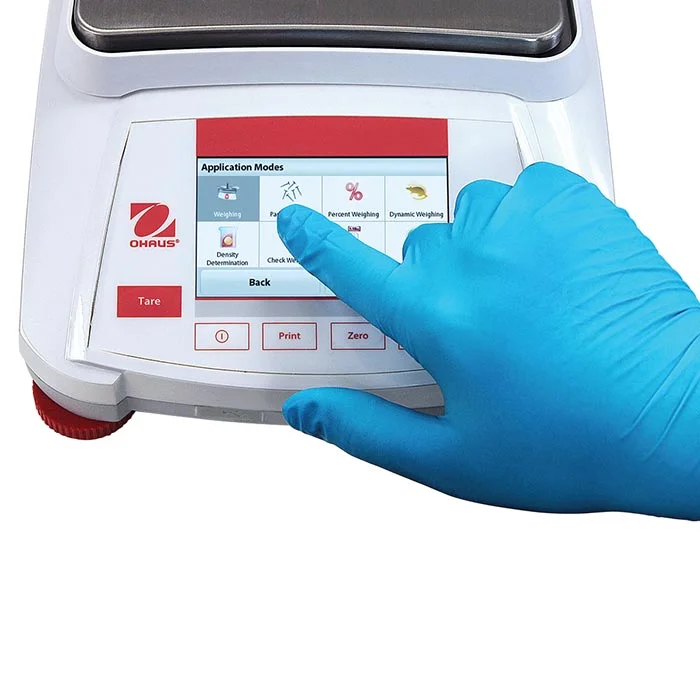

  • 4.3″ full-colour VGA graphic touchscreen

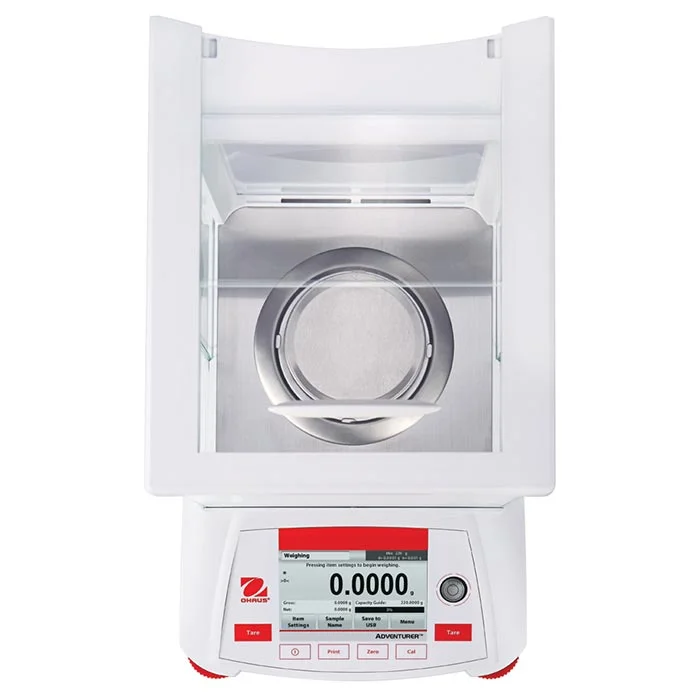

  • Glass draft shield with two-piece top-mounted side doors and sliding top door
  • User selectable span calibration points
  • GLP/GMP compliance capabilities and data output with real-time clock
  • Nine application modes: weighing, parts counting, percent weighing, check weighing, animal/dynamic weighing, totalization/statistics, formulation, density determination, display hold
  • Dual USB ports and RS232 connection

Adventurer balances feature a colour touchscreen, icon-based user interface, and an ergonomic design making them easy to configure and use. Features such as specialized weighing modes, multiple connectivity options, and AutoCal™ provide versatility and flexibility for a variety of applications.

Connectivity: A front USB host port is easily accessible and makes it simple to load data from the balance onto a flash drive without having to reach around to the back or move the balance. A second USB device is located at the rear of the balance that can be used to connect the balance to a PC.

The connectivity options help meet traceability requirements in traditional installations Real Time Clock with GLP/GMP Data. A real-time clock function keeps accurate time even during power loss and the GLP data capability has the ability to record Sample names, Project names and Balance ID’s to help meet traceability and compliance requirements

Balance Profiles: The cloning feature allows you to save user and application settings to a USB flash drive which can be easily used to configure additional Adventurer balances

Below Minimum Sample Weight Indication: When using the minimum weight feature, the display clearly indicates that your current sample weight is below your defined minimum limit. Simply increase your sample weight to assure that your results are up to your standards

Optional Accessories

ModelAX124AX224AX324
External CalibrationAX124/EAX224/E
Approved ModelsAX124MAX224MAX324M
Capacity (g)120220320
Readability d (g)0.0001
Verification Interval* e (g)0.001
Class*I
Repeatability std (g)±0.0001
Linearity (g)±0.0002
Stabilization Time (sec)≤3
Sensitivity Drift (ppm/°C)1.5
Typicial Min-weight (g) (USP, u=0.10%,k=2)0.20g0.20g0.20g
Optimized Min-Weight (g)
(USP, u=0.10%, k=2) SRP≤0.41d**
0.082g0.082g0.082g
Weighing Unitsgram, milligram, mesgal, momme, Newton, ounce, pennyweight, Baht, carat, grain, pound, Tael (Hong Kong), Tael, (Singapore), Tael (Taiwan), tical, tola, troy ounce, custom (1)
Weighing Units, Approved Modelsmg, g, ct
Weighing ApplicationsWeighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold
Pan SizeØ 90 mm
CalibrationAll models feature external calibration. Models feature AutoCal™ internal calibration, except for AX…/E models
Tare RangeTo capacity by subtraction
Power RequirementsAC Adapter Input: 100-240 VAC 0.3A 50-60 Hz AC Adapter Output: 12 VDC 0.84A
Display TypeFull-Color Touchscreen WQVGA Graphic LCD
Display Size109 mm / 4.3 in (diagonal)
Base Housing (W×H×D)354 × 340 × 230 mm
CommunicationRS232, USB Device, USB Host
Temperature Range10°C to 30°C / 50°F to 86°F
Humidity RangeMaximum relative humidity 80 % for temperatures up to 30°C  / 86°F
Storage Conditions-10°C / 14°F to 60°C / 140°F at 10% to 90% relative humidity, non-condensing
Shipping Dimensions507 × 387 × 531 mm
Net Weight5.1 kg
Shipping Weight7.8 kg

*Approved models only
**The value for SRP is the standard deviation for n replicate weighings (n ≥ 10)

Request more information

Additional information

Capacity

, ,

Readability (Certified)

,

Internal Calibration

InCal™ – Semi Automatic, Not Applicable

Downloads

Ohaus Adventurer Balances Datasheet
