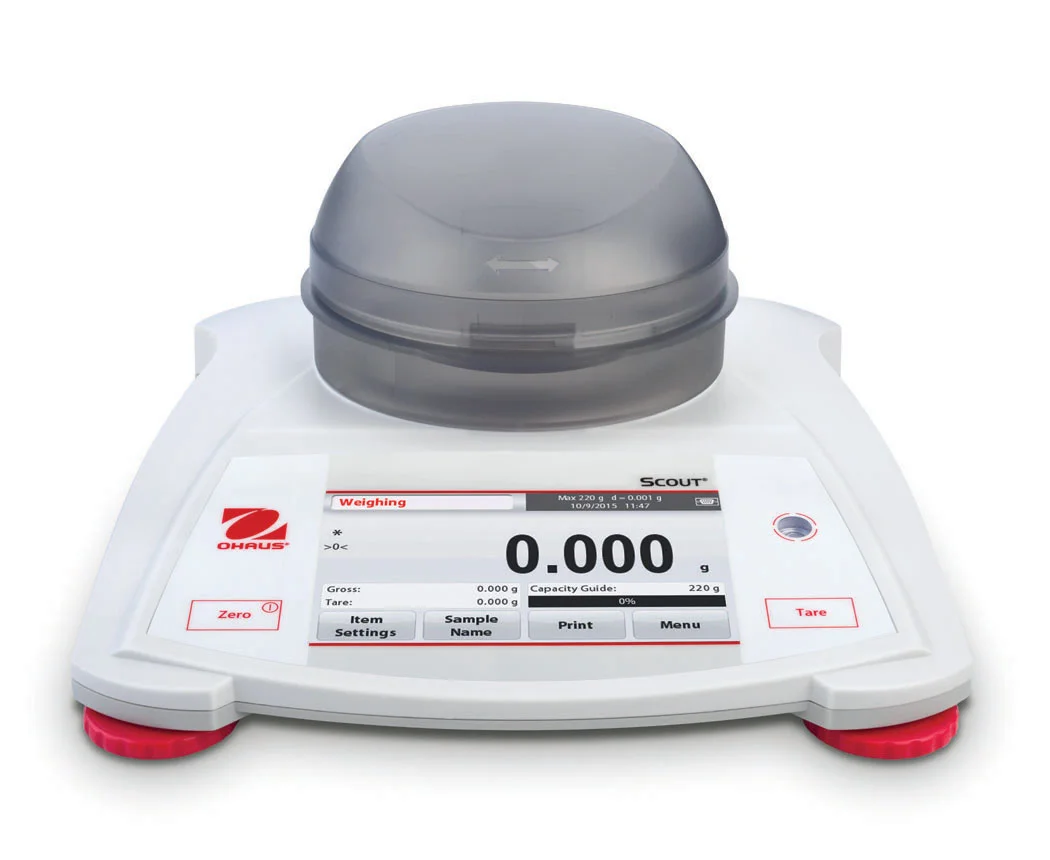

Ohaus Scout SKX Portable Precision Balance

Designed for education applications, the Ohaus Scout SKX Portable Precision Balance features a large backlit LCD and is backed by education software, making it the ideal balance for your classroom.

Ohaus Scout SKX Portable Precision Balance

Designed for education applications, the Ohaus Scout SKX Portable Precision Balance with large backlit LCD backed by education software is the ideal balance for your classroom. It is built to endure demanding classroom applications with superior overload protection.

Key Features

  • Fast stabilisation time
  • Increased capacity
  • Advanced weighing technology
  • Repeatable and reliable weighing results
  • Stackable design – easy storage (excluding 1mg model)
  • Multiple connectivity options

Scout has multiple connectivity options – RS232, USB Host, USB Device, Ethernet and Bluetooth®*. With expanded connectivity options, the OHAUS Scout offers more versatility for convenient data logging, communication and remote functionality. Utilize the Bluetooth accessory to remotely control the balance from your mobile device or tablet for Android™**. Perform functions such as Zero, Tare, Print, Power Off and more. With the USB Host option, you can simply save and transfer data from the balance to a USB drive.

The superior mechanical overload protection system of the Scout is comprised of a high-strength stainless steel pan and an impact-resistant plastic pan support. This enables the balance to safely withstand loads up to 10 times its rated capacity, and survive in demanding classroom environments where capacity may be frequently exceeded. Scout’s unique stacking and storage cover allows the balance to be safely stored away when not in use. The integrated transportation lock protects the load cell from damage during stacking storage and transportation.

* The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by OHAUS is under license.
**Android is a trademark of Google Inc.

Optional Accessories

ModelSTX123STX223STX222STX422STX622STX1202STX2202STX421STX621STX2201STX6201STX8200
Capacity (g)12022042062012002200420620220062008200
Readability (g)0.0010.010.11
Repeatability (Std. Dev.) (g)0.0020.010.020.11
Linearity (g)0.0030.010.020.030.10.21
Span Calibration Mass1100 g200 g300 g1 kg2 kg200 g300 g2 kg5 kg8 kg
Linearity Calibration Mass50, 100 g100, 200 g200, 400 g300, 600 g500 g, 1 kg1 kg, 2 kg200, 400 g300, 600 g1 kg, 2 kg3 kg, 6 kg4 kg, 8 kg
Stabilization Time (s)1.511.51
ConstructionABS housing & stainless steel pan
DraftshieldYesNo
CalibrationUser-selectable external span or linearity calibration/Digital with external weight
Tare RangeFull capacity by subtraction
Weighing Units2mg, g, kg, ct, N, oz, ozt, dwt, lb, lb:oz, grn, hkt, sgt, twt, tical, tola, custom unit 1
Application ModesWeighing, Parts Counting, Percent Weighing, Check Weighing, Animal/Dynamic Weighing, Totalization, Density Determination, Display Hold, Mole Weighing
Power RequirementAC adapter (included) or 4 AA batteries (not included)
Typical Battery Life6 hours
CommunicationRS232, USB Host, USB Device, Ethernet or Bluetooth® (available as an accessory, compatible only with Android OS device)
Display Type109 mm full-colour VGA graphic touchscreen display with user-controlled brightness
Display Size109 mm (diagonal)
Overload Capacity10 times the rated capacity
Operating Temperature Range10°C to 40°C at 10% to 80% relative humidity, non-condensing
Storage Conditions-20°C to 55°C at 10% to 90% relative humidity, non-condensing
Pan Size (W × D)Ø 93 mmØ 120 mm170 × 140 mmØ 120 mm170 × 140 mm
Balance Dimensions (W × D × H)202 × 222 × 103 mm202 × 224 × 54 mm
Shipping Dimensions (W × D × H)300 × 250 × 129 mm
Net Weight1 kg
Shipping Weight1.6 kg

* Span calibration weight is included with models up to 620g capacity

Additional information

Capacity

, , , , , , ,

Pan/Platform Size (mm)

,

Readability

, , ,

Downloads

Ohaus Scout SKX Portable Precision Balance Datasheet
